series ED-J
Descrizione:
Gruppo Antincendio EN 12845 composto da 1 Elettropompa Principale, 1 Motopompa Diesel di riserva ed 1 Pompa Pilota.
Pompe principali centrifughe tipo“back pull-out”secondo EN 733 (ex DIN 24255) aspirazione assiale e mandata radiale, corpo pompa in ghisa, tenuta meccanica, accoppiamento eseguito a mezzo di giunto elastico spaziatore con motore elettrico asincrono trifase e con motore diesel allestito secondo Norma EN 12845. Il gruppo antincendio risulta completo di una elettropompa principale, una motopompa di riserva ed una pompa pilota, montate su di basamento/i in profilati di acciaio verniciato e cablate elettricamente ai quadri elettrici di comando installati a bordo skid (per potenze ≥ ai kW 110 il quadro elettrico dell’elettropompa principale viene fornito sciolto in armadio metallico di dimensioni max LxHxP = mm 800x1700x430 ed il suo cablaggio con il gruppo sarà a cura del Cliente). La fornitura del gruppo antincendio serie“ED...-J...-...” non comprende in aspirazione né valvole di intercettazione né coni eccentrici di allargamento per le pompe principali né compensatore elastico antivibrante per la motopompa, i quali devono essere ordinati separatamente (le riduzioni eccentriche vanno dimensionate secondo le indicazioni della norma EN 12845, si veda a pag. 84-85). Serbatoio di gasolio incluso, fornito separato su piedistallo.
Description:

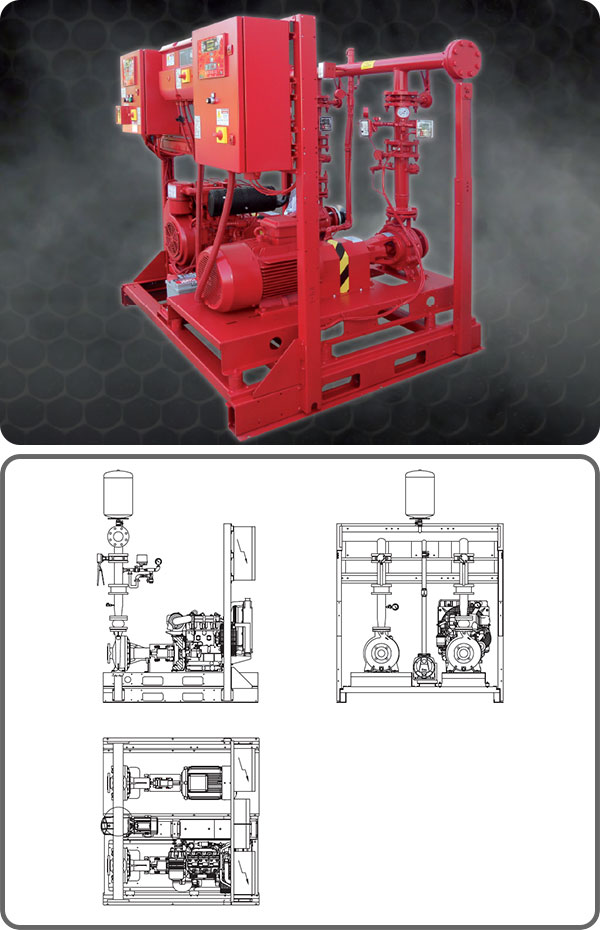

Fire Fighting Unit according to standard EN 12845, consists of 1 Electric Main Pump + 1 Diesel Main Motorpump + 1 Jockey Pump.
Main centrifugal pumps“back pull-out”according to EN 733 (ex DIN 24255) axial suction and radial discharge, cast iron pump casing, mechanical seal, coupling performed by means of flexible coupling spacer with three-phase asynchronous electric motor and with diesel engine fitted in compliance with EN 12845. The fire fighting unit is complete with 1 electric main pumps, 1 diesel main pump and a jockey pump mounted on a painted steel base, electrically wired to the electrical control panels installed on board skid (for power ≥ kW 110, the control panel of the electric main pump is supplied loose cabinet metal max size = WxHxD mm 800x1700x430 and its wiring with the group will be at the Customer). The standard supply of the Fire unit Series “ED...-J...-...” does not include either the suction valves or suction eccentric enlargements or elastic vibration compensators of the main pumps, which must be ordered separately (suction reducing eccentric be sized according to the directions of the standard EN 12845, please look at page 84-85). Diesel tank included, provided on a separate pedestal.
Descripción:
Main centrifugal pumps“back pull-out”according to EN 733 (ex DIN 24255) axial suction and radial discharge, cast iron pump casing, mechanical seal, coupling performed by means of flexible coupling spacer with three-phase asynchronous electric motor and with diesel engine fitted in compliance with EN 12845. The fire fighting unit is complete with 1 electric main pumps, 1 diesel main pump and a jockey pump mounted on a painted steel base, electrically wired to the electrical control panels installed on board skid (for power ≥ kW 110, the control panel of the electric main pump is supplied loose cabinet metal max size = WxHxD mm 800x1700x430 and its wiring with the group will be at the Customer). The standard supply of the Fire unit Series “ED...-J...-...” does not include either the suction valves or suction eccentric enlargements or elastic vibration compensators of the main pumps, which must be ordered separately (suction reducing eccentric be sized according to the directions of the standard EN 12845, please look at page 84-85). Diesel tank included, provided on a separate pedestal.
Grupo Contra Incendio EN 12845 compuesto de No.1 Bomba Principal Eléctrica + No.1 Bomba Principal Diesel + No.1 Bomba Jockey.
Main centrifugal pumps“back pull-out”according to EN 733 (ex DIN 24255) axial suction and radial discharge, cast iron pump casing, mechanical seal, coupling performed by means of flexible coupling spacer with three-phase asynchronous electric motor and with diesel engine fitted in compliance with EN 12845. The fire fighting unit is complete with 1 electric main pumps, 1 diesel main pump and a jockey pump mounted on a painted steel base, electrically wired to the electrical control panels installed on board skid (for power ≥ kW 110, the control panel of the electric main pump is supplied loose cabinet metal max size = WxHxD mm 800x1700x430 and its wiring with the group will be at the Customer). The standard supply of the Fire unit Series “ED...-J...-...” does not include either the suction valves or suction eccentric enlargements or elastic vibration compensators of the main pumps, which must be ordered separately (suction reducing eccentric be sized according to the directions of the standard EN 12845, please look at page 84-85). Diesel tank included, provided on a separate pedestal.
Main centrifugal pumps“back pull-out”according to EN 733 (ex DIN 24255) axial suction and radial discharge, cast iron pump casing, mechanical seal, coupling performed by means of flexible coupling spacer with three-phase asynchronous electric motor and with diesel engine fitted in compliance with EN 12845. The fire fighting unit is complete with 1 electric main pumps, 1 diesel main pump and a jockey pump mounted on a painted steel base, electrically wired to the electrical control panels installed on board skid (for power ≥ kW 110, the control panel of the electric main pump is supplied loose cabinet metal max size = WxHxD mm 800x1700x430 and its wiring with the group will be at the Customer). The standard supply of the Fire unit Series “ED...-J...-...” does not include either the suction valves or suction eccentric enlargements or elastic vibration compensators of the main pumps, which must be ordered separately (suction reducing eccentric be sized according to the directions of the standard EN 12845, please look at page 84-85). Diesel tank included, provided on a separate pedestal.
